Pipeline

Pipeline stages and phases

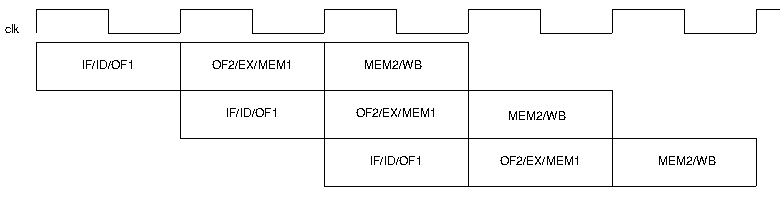

Currently, the SpartanMC uses a three stage pipeline driven by one clock signals. IF, ID and OF1 are combined to form the first stage, OF2, EX and MEM1 form the second stage and MEM2 and WB the third stage.
Image of the pipeline not found
IF-Instruction Fetch
ID-Instruction Decode
OF-Operand Fetch
EX-Execute Instruction
MEM-READ/WRITE Memory
WB-Write Back

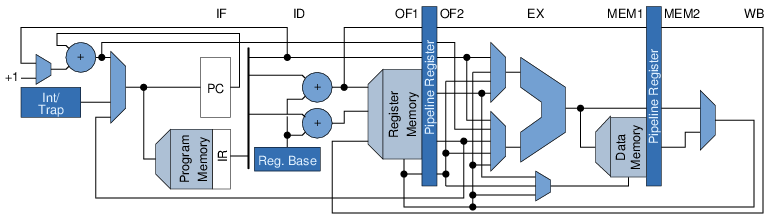

Block diagram of the SpartanMC pipeline

The SpartanMC has no separate memory for data and instructions. Instead it uses dedicated ports for instructions and data implemented via FPGA dual port BlockRAMs. This partition allows a modified Harvard achitecture. The data memory is organized in 2k x 9 bit configuration, using two BlockRAMs in parallel which simplifies writing on 9 bit wide data. An arbitray number of those pairs can be used to form the main memory of the system.
Image of the pipeline block diagram not found
The classic SpartanMC pipeline used phase splitting to read or write the register memory. In the first phase the register is used to store the result form the WB stage (cf. lower port of register memory). In the second phase it is used to read the operands (cf. upper two ports of register memory). The memory addresses are computed by the adder of the ALU. In order to relax the timing of the IF/ID/OF stage the current pipeline uses a true three port memory to avoid the phase splitting.
(In the diagram there are several things not shown e.g. write access to data memory or the special function registers.)
